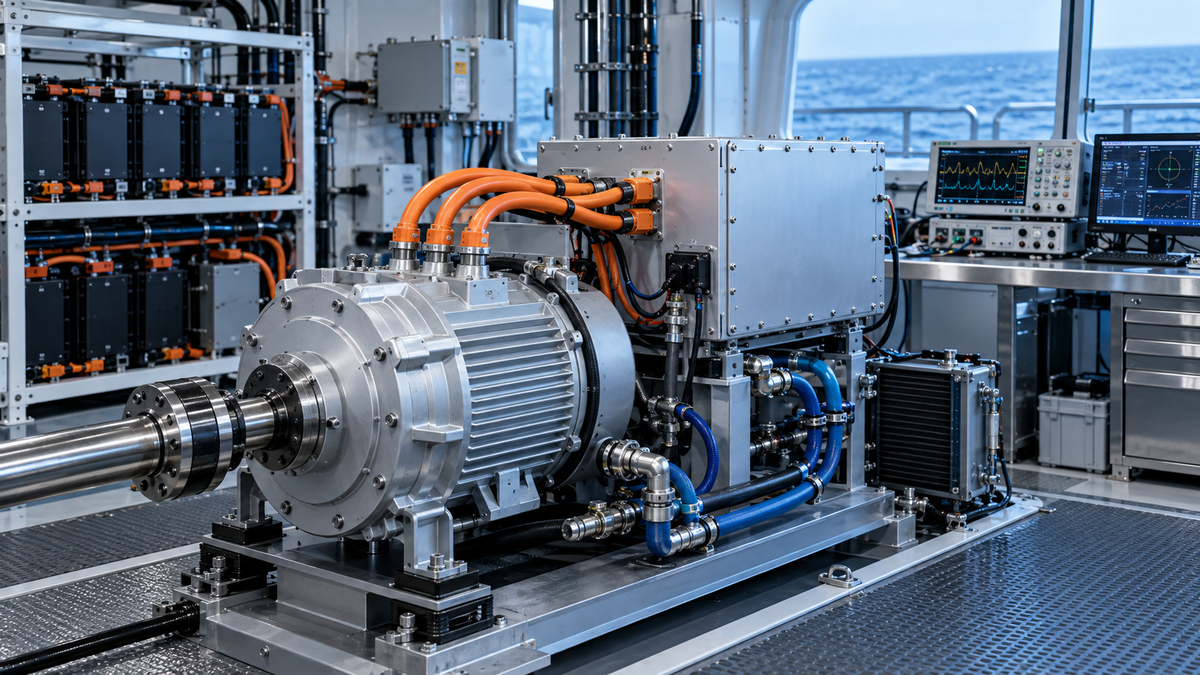

Marine electric propulsion is a system-integration problem before it is a motor-selection problem. The propeller, hull, operating profile, energy source, inverter, motor, cooling, controls and protection must work as one system across maneuvering, cruise, low battery, fouling, waves and fault conditions.
A propulsion motor can meet its nameplate rating while the vessel still misses range, acceleration or thermal targets. The usual cause is not one bad component. It is an operating case, interface or transient that was not included in the architecture.
Start with the vessel operating profile
Define how the vessel will actually be used. Record speed, duration, payload, displacement, route, wind, current, sea state, maneuvering, hotel loads and reserve expectations. Separate continuous cruise from short acceleration, docking, station keeping and emergency operation.
For hybrid systems, define when each energy source is expected to operate and what transitions occur between modes. For battery systems, include available energy at beginning and end of life, temperature, allowed depth of discharge and the power limits imposed by the battery-management system.
Convert vessel resistance into a propeller load
The motor does not propel the boat directly; it delivers torque and speed to a propeller through a shaft or transmission. Hull resistance, propeller diameter and pitch, gear ratio, shaft losses and ventilation or cavitation behavior determine the motor load.
Use a torque-speed envelope rather than a single power point. Include:
- breakaway and low-speed maneuvering;
- continuous cruise at representative displacement;
- maximum commanded speed;
- acceleration and crash-stop behavior;
- operation in waves, current and wind;
- propeller fouling, damage or ventilation;
- towing or emergency loads when applicable.
The propeller curve changes strongly with speed, so a propulsion system spends much of its life away from the maximum-power point. IMO efficiency resources emphasize matching operating speed and propulsion demand rather than treating maximum rating as the normal condition.
Size the complete electrical path
Peak shaft power passes through the source, protection, contactors, cabling, connectors, DC link, inverter and motor. Each element adds voltage drop, loss and thermal limits. A battery may have sufficient stored energy but insufficient discharge power at low state of charge or cold temperature.
Build a loss and voltage budget for every important operating case. Evaluate minimum bus voltage at peak load, maximum bus voltage during charging or regeneration, cable temperature rise, inverter switching and conduction loss, motor copper and iron loss, and auxiliary loads for cooling and controls.
Design around torque, speed and cooling
Motor continuous torque is a thermal limit. Peak torque is meaningful only with a duration, starting temperature and recovery period. Marine duty can combine long continuous operation with repeated docking maneuvers and a constrained enclosure.
Cooling performance depends on water temperature, flow, fouling, pump condition and installation. If raw water and a secondary coolant loop are used, define heat-exchanger performance and what happens when flow is reduced. Temperature sensing should support both control derating and fault protection.
Account for regeneration and bus overvoltage
A propeller can drive the motor during rapid deceleration, towing, following seas or certain sailing conditions. The resulting energy raises DC-bus voltage unless the source can accept it or another path dissipates it.
Define whether regeneration is an intended operating mode. Coordinate inverter limits with battery charge limits, state of charge, temperature and contactor state. If the source cannot absorb the energy, the architecture may need controlled deceleration, a braking element or another overvoltage strategy.
Coordinate propulsion and energy management
Full-electric and hybrid vessels need explicit power allocation. Propulsion commands may compete with steering, pumps, navigation, hotel loads and mission equipment. A supervisory controller can enforce source limits, reserve energy, coordinate generator operation and reduce propulsion demand before protection trips.
IMO's GreenVoyage2050 material notes that hybridization can support peak shaving and allow generating equipment to operate nearer efficient load points. The actual benefit depends on the vessel profile and power-management strategy.
Define control modes and transitions
Document startup, precharge, enable, neutral, forward, reverse, docking, cruise, derated and emergency states. For each transition, define command authority, permissives, timing, feedback and failure response.
Direction reversal deserves specific analysis. Reversing torque at speed can create high current and mechanical load. The control system may need a speed-dependent transition, torque ramp or explicit neutral interval. Validate behavior with the real propeller inertia and vessel dynamics.
Protect for marine faults
Protection must address electrical faults and the consequences of losing propulsion. Important cases include:
- overcurrent, phase short and ground fault;
- blocked or damaged propeller;
- motor or inverter overtemperature;
- loss of coolant flow;
- bus under/overvoltage and precharge failure;
- contactor weld or unexpected opening;
- sensor disagreement and command mismatch;
- loss of helm communication or supervisory control;
- water ingress, insulation degradation and corrosion;
- loss of one source or propulsion channel in a redundant system.
Decide which faults require immediate torque removal, controlled derating, limited limp-home operation or operator confirmation. Protection thresholds should coordinate so that a recoverable overload does not unnecessarily remove propulsion while a dangerous fault is not masked by software.
Engineer the physical interfaces
Marine installation exposes electronics to humidity, salt, vibration and temperature cycling. Enclosures, cable entries, connectors, grounding, isolation and drainage need to match the installation location and service plan.
High-current switching also creates electromagnetic interference. Route motor, battery, communication and sensor cabling deliberately. Define shield terminations and grounding at the system level. Test with production cable lengths and the vessel's actual distribution architecture.
Verify from bench to water
A staged program can expose problems safely:
- Component tests. Characterize motor, inverter, sensors, contactors and cooling hardware.
- Powertrain bench. Use a dynamometer or representative load to map efficiency, torque, speed, temperature and fault behavior.
- Integrated electrical system. Verify precharge, source limits, energy management, auxiliaries and communications.
- Dockside tests. Confirm installation, cooling, direction, interlocks, helm controls and low-speed operation.
- Sea trials. Measure speed, power, range, temperatures, maneuvering and behavior across expected loading and environmental conditions.
Record synchronized shaft, electrical, thermal and vessel data. A sea-trial speed alone cannot explain whether a limit came from the hull, propeller, battery, inverter, motor or control strategy.
Integrate around the mission
The right marine propulsion system is the one that meets the vessel's maneuvering, range, reliability and service requirements as an integrated whole. Selecting the motor first and fitting the rest around it can hide the most important constraints until late testing.
