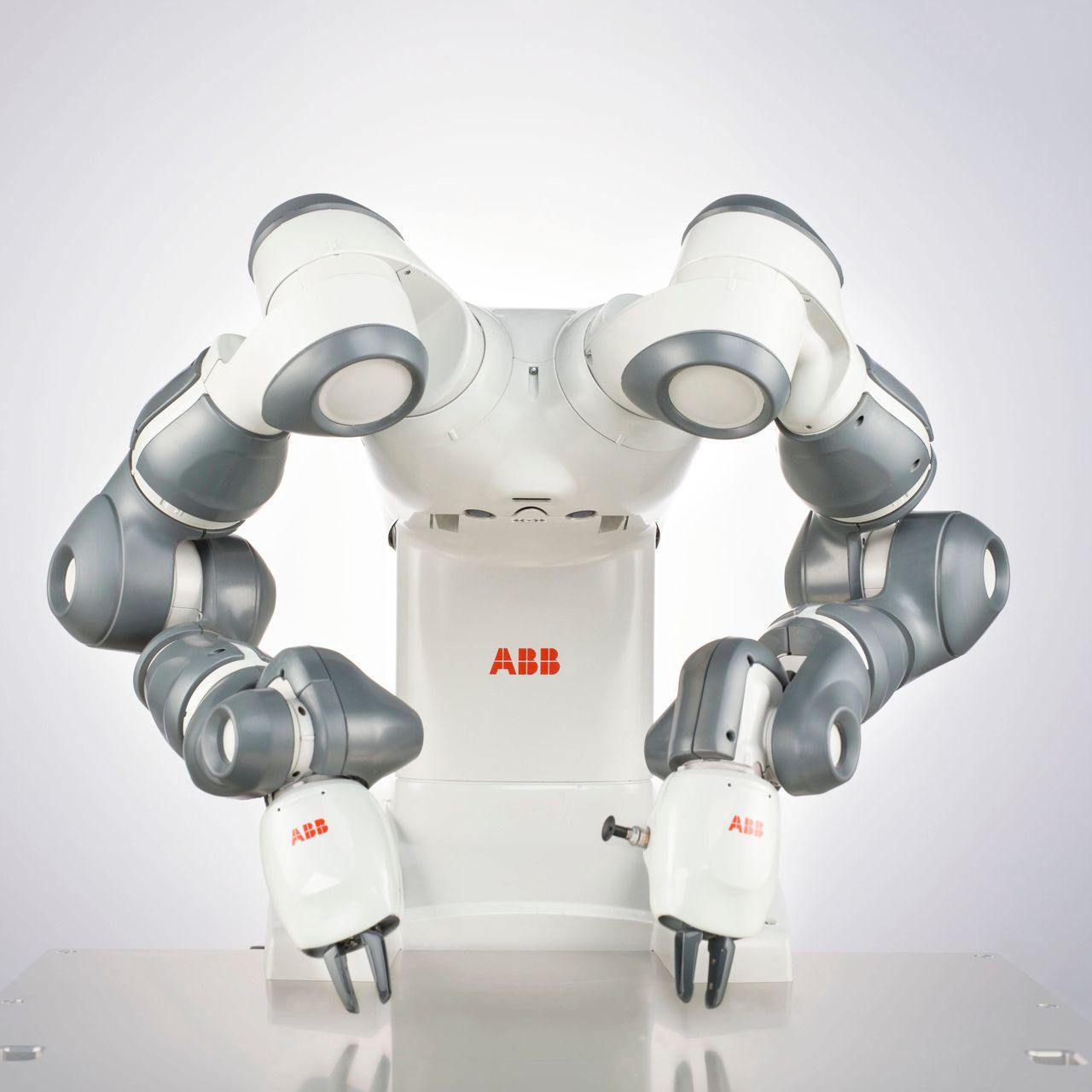

Integrating an ABB robot is a systems-engineering task. The robot arm and controller provide motion, I/O, programming and optional safety or process capabilities. The application still needs tooling, fixtures, sensing, cell controls, risk reduction, calibration, operator workflows and objective acceptance evidence.
This guide focuses on the integration decisions that determine whether an ABB-based cell can meet its process requirements and remain maintainable.
Define the application before the robot model
Start with the process sequence and part flow. Identify every pick, place, path, process operation, inspection, handoff and operator interaction. Define cycle-time targets, product variants, payloads, quality criteria, environment and required availability.
The robot selection envelope should include more than nominal payload and maximum reach:
- tool, part, adapters, dress pack and cable mass;
- combined center of gravity and inertia;
- all required tool-center-point poses and approach clearances;
- path and orientation constraints through the full motion;
- mounting position, base stiffness and external axes;
- process force, path accuracy and speed requirements;
- temperature, dust, moisture, washdown or clean-environment needs;
- controller generation, software, communication and safety options.
Check those inputs against current ABB documentation for the exact robot/controller combination. Model names, software releases, options and supported pairings change; archived product pages should not drive a new purchase.
Understand the coordinate system
Most robot applications depend on several coordinate frames: robot base, world, work object, tool, sensor, fixture and sometimes external-axis frames. A motion command can be numerically correct and still miss the part because one frame or calibration changed.
ABB RAPID uses data such as tooldata, wobjdata, robtarget and jointtarget to represent tooling, work objects and target positions. The current ABB RAPID technical reference documents these types and instructions.
Plan how each frame is established, verified and recovered:
- How is the tool center point measured?
- How is the work object tied to physical datums?
- What tolerance and measurement uncertainty are acceptable?
- What happens after a collision, tool replacement or fixture service?
- Which calibration values are backed up and version controlled?
Design tooling for variation and failure
The end effector determines how the robot interacts with the process. Define gripping forces, contact surfaces, compliance, part presence, tool state, utilities, cable flex, mass, inertia and safe behavior after power loss.
Nominal CAD geometry is not enough. Test minimum and maximum part conditions, surface finish, contamination, temperature and wear. If a vacuum cup, jaw or magnetic gripper can lose a part, determine where that part can fall and how the control system detects the failure.
For assembly, deburring, polishing or test applications, position control may not accommodate part variation or process force. ABB describes Integrated Force Control options that adapt motion using force-sensor feedback. Suitability depends on the exact robot, controller, option, tooling and application; confirm current compatibility before design commitment.
Engineer fixtures and part presentation
A fixture should locate the part repeatably, tolerate the process load, permit sensing and remain accessible for operation and maintenance. Datum strategy, clamp sequence and tolerance accumulation should match the process quality requirement.
For conveyors, trays, feeders or random-bin picking, define the complete material-flow envelope. Consider empty, overfilled, jammed, wrong-part, damaged-part and mixed-variant conditions. Decide how rejects are contained and how the cell confirms a successful handoff.
Create one control-state model
A robot controller, PLC, safety controller, vision system and process equipment can each be internally correct while the cell sequence is ambiguous. Define which controller owns the production state and how subsystems exchange commands, status and faults.
| State | Expected behavior |
|---|---|
| Initializing | Verify controller, tooling, sensors, recipes, communication and safe starting conditions |
| Ready | All prerequisites satisfied; no motion until a valid start command |
| Automatic | Execute the controlled sequence and publish meaningful progress/status |
| Starved or blocked | Wait without losing part or process state; expose the external condition |
| Paused | Hold or stop using the defined process-safe behavior |
| Faulted | Stop appropriately, preserve diagnosis and prevent unsafe restart |
| Recovery | Guide bounded operator actions and re-establish a known state |
| Manual or teach | Permit authorized setup with applicable speed, enabling and access controls |
Specify communication timeout, stale data, duplicated command, sequence mismatch and restart behavior. A handshake should identify the transaction or state, not rely on a pulse that can be missed.
Model the cell in RobotStudio
ABB’s RobotStudio materials describe virtual-controller simulation and offline programming. A production-intent model can evaluate reach, collisions, cycle time, path behavior, I/O logic and layout before installation.
Build the model with realistic tool geometry, payload, acceleration, process dwell, communication delay and external equipment. Include approach and retreat paths, homing, fault recovery, tool change, manual access and maintenance clearance. Check joint range and singularity exposure, not only tool-path clearance.
Simulation reduces uncertainty; it does not remove commissioning. Physical calibration, cable behavior, part variation, sensor performance, process force and safety validation still require representative hardware.
Plan vision and sensing around uncertainty
Vision accuracy depends on optics, lighting, exposure, working distance, calibration, part appearance and mechanical stability. Define the probability and consequence of false accept, false reject and no-read. A successful demonstration with selected parts is not a production capability study.
Document coordinate transformations from camera to robot or work object. Challenge calibration with temperature, focus, lens distortion, vibration and service replacement. Decide how the cell detects that calibration is no longer valid.
Other sensors may verify grip, part presence, force, tool state, fixture clamp, process result or clearance. Use independent sensing where the risk or quality requirement justifies it; do not infer a critical condition solely from a command being issued.
Treat safety as part of the cell architecture
ISO 10218-1:2025 covers industrial-robot safety requirements for the robot, while ISO 10218-2:2025 covers industrial robot applications and cells. An integrated cell needs an application risk assessment and validated risk-reduction measures.
ABB’s SafeMove is a configurable safety option within supported ABB systems. Its presence does not replace the risk assessment, correct configuration, external safeguards or validation. The exact capability and compatibility depend on the controller, RobotWare and licensed options.
The OSHA industrial-robot systems chapter stresses hazards during normal and non-routine operation. Cover setup, teach, cleaning, jam clearing, tool service, maintenance, fault recovery and unexpected restart. Include hazards from the application process, not only robot motion.
Separate safety control from process control
A standard PLC command does not become a safety function because it stops motion in normal operation. Identify which risk reductions require safety-rated architecture and what performance is needed. Define stop categories, interlocks, protective devices, enabling functions, safe speed or position limits, reset and restart behavior.
Validate the implemented safety functions in the final configuration. Record devices, logic, parameters, measured stopping behavior, fault tests and the result of each requirement.
Design operator and maintenance workflows
Operators need clear production status, part or recipe identity, cause-based alarms and bounded recovery steps. Maintenance needs diagnostics, safe access, backups, version identification, calibration procedures and known-good replacement paths.
Do not require a robot programmer for every minor interruption. At the same time, do not expose unrestricted motion or program edits as an operator recovery method. Separate user roles and record changes to production parameters.
Commission in layers
- Verify installation. Robot mounting, tooling, utilities, wiring, network, controller options and device identity.
- Verify safety hardware and logic. Access devices, stops, modes, reset and restart before process motion.
- Calibrate frames and tools. Establish baselines and a repeatable recovery method.
- Test subsystems. Tooling, fixtures, sensing, process equipment and data interfaces independently.
- Run sequence states. Normal, starved, blocked, paused, faulted and recovery cases.
- Challenge variation. Product variants, material extremes, lighting, temperature, wear and communication faults.
- Complete runoff. Demonstrate cycle time, quality, availability, changeover and recovery with representative production conditions.
Preserve a serviceable production baseline
Release robot programs, controller configuration, PLC and safety logic, HMI, vision jobs, calibration, drawings, bills of material, manuals and backups together. Record controller and software versions and required licenses. Test restore procedures before the system depends on them.
Define how changes are reviewed and verified. A path optimization, new gripper pad, camera replacement or controller update can affect safety, calibration, cycle time and quality evidence.
Integration determines the production result
An ABB robot is one component in a controlled manufacturing system. Application requirements, tooling, sensing, sequence design, safety and recovery convert the platform’s capabilities into production performance.
