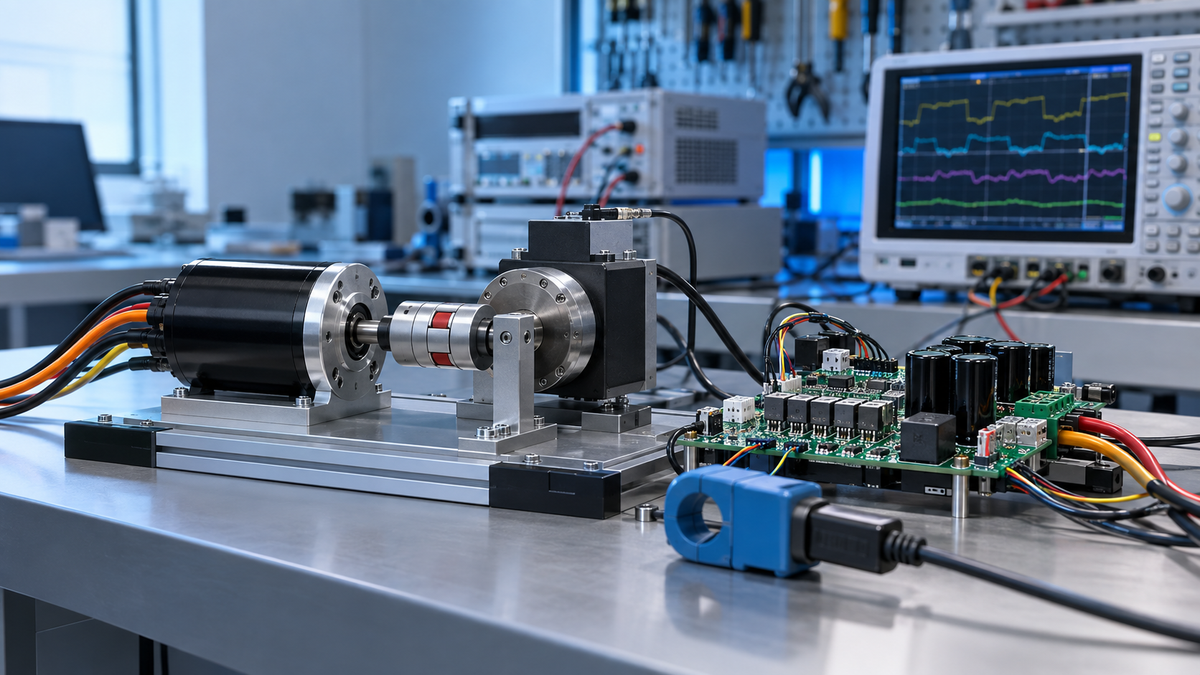

A custom motor controller should not begin with a favorite microcontroller, gate driver or control algorithm. It should begin with the machine, mechanism and mission profile the controller must support. The same nominal motor can require very different electronics when acceleration, regeneration, precision, enclosure, source impedance and fault response change.
A useful requirements process converts that operating context into measurable electrical, thermal, mechanical, firmware and verification constraints. It also exposes assumptions early, before they become board spins or unstable control behavior. This guide describes the questions that shape a defensible architecture and complements Outer Reef’s custom motor-controller engineering capability.
Start with the mission profile, not the nameplate
Record torque and speed versus time for normal operation, startup, acceleration, holding, braking and unusual conditions. Include cycle frequency, dwell time, ambient temperature, available cooling and expected service life. A peak rating without duration and repetition is not a usable requirement.
Define the mechanical load at the motor shaft. Gear ratio, reflected inertia, friction, compliance, backlash and external disturbances affect current demand and control bandwidth. Where the load is uncertain, identify the measurement or prototype needed to replace the assumption.
Define the electrical source and energy path
Specify nominal, minimum and maximum bus voltage at the controller terminals rather than only the source label. Cable drop, battery state of charge, source impedance, contactors and upstream protection can change the voltage available during a transient.
Decide where regenerated energy can go. A battery may reject charge at high state of charge or low temperature, while a bench supply may not sink current at all. The architecture may need controlled deceleration, a brake resistor, an active clamp or coordination with an energy-management system.
Translate motion needs into sensing and control
Position, velocity and torque performance determine the feedback strategy. Hall sensors may support commutation but not the resolution required for low-speed servo behavior. Encoders, resolvers, sensorless observers and current sensing each add different limits, interfaces and diagnostic needs.
Choose six-step, sinusoidal or field-oriented control from the actual performance envelope. The decision affects processor load, current measurement timing, tuning, acoustic behavior and verification. The FOC versus six-step guide provides a deeper comparison.
Specify the power stage as a stress envelope
Define continuous phase current, transient current, switching frequency, dead time, allowable ripple and short-circuit response. Size MOSFETs, gate drivers, shunts, capacitors and copper from combined electrical and thermal stress rather than individual headline ratings.
Include parasitic inductance and switching transients in the requirement set. Voltage overshoot, common-mode current and ringing depend on the physical layout, commutation loop and cable environment. These behaviors must be measured on representative hardware.
Make protection behavior explicit
List foreseeable faults: phase short, ground fault, stalled rotor, lost feedback, sensor disagreement, overtemperature, bus under/overvoltage, precharge failure and communication loss. For each fault, define detection time, allowed torque, shutdown method, latching behavior and recovery authority.
Protection is a coordinated system. Hardware comparators, gate-driver protection, firmware limits and upstream fuses should not fight each other or leave an unsafe gap. A controller that merely reports a fault after damage is not protected.
Define interfaces and operating states
Document commands, feedback, timing, voltage levels, termination, isolation, grounding and behavior at startup or loss of communication. Treat enable, inhibit and emergency signals as designed interfaces with known default states.
Create a state model for power-up, precharge, calibration, ready, run, derated, fault and service modes. State transitions make hidden requirements visible, especially around unexpected resets, brownouts and interrupted startup.
Plan thermal and mechanical integration together
Continuous current is usually a thermal result. Define allowable semiconductor junction, capacitor, shunt, connector and PCB temperatures with margin. Model the path from each heat source through copper, interface material, enclosure and coolant or air.
Mounting, vibration, contamination, moisture, connector retention and service access also shape the electronics. The controller enclosure may be part of the heat sink and EMC strategy, so mechanical and electrical teams should resolve those interfaces together.
Turn requirements into verification evidence
Link each measurable input to a method, configuration and acceptance criterion. Bench tests should cover steady state, transient load, source extremes, thermal equilibrium, regeneration, faults and communications. Use calibrated instrumentation and preserve waveforms or logs needed to explain the result.
A staged plan is efficient: component and power-stage characterization, open-loop checks, closed-loop tuning, subsystem testing and representative system validation. The result is not just a working prototype; it is evidence that the chosen architecture meets the intended operating envelope.
Use a design-review checklist
Before releasing hardware or beginning formal verification, review the architecture as a complete energy and control system. The checklist should identify the owner and evidence for each open item rather than recording a simple pass or fail.
- Are the normal, peak, regenerative and fault operating cases quantified?
- Do component stresses include tolerance, temperature and transient margin?
- Are high-current and high-frequency return paths shown explicitly?
- Can sensing remain accurate during the worst switching conditions?
- Are protection thresholds coordinated across hardware, firmware and upstream devices?
- Does the mechanical design provide the assumed cooling and grounding paths?
- Are startup, shutdown, reset and communication-loss behaviors specified?
- Can the planned tests measure every acceptance criterion with suitable uncertainty?
Close the review with a prioritized evidence plan. Resolve destructive or architecture-level risks first, then performance margins, then optimization. That sequence prevents detailed tuning from hiding a power-stage, thermal or interface limitation that requires a redesign.
Record the exact hardware revision, firmware commit, motor, load, source, cables, cooling and instrument setup used for each result. Controller behavior can change materially when any of those elements changes. Reproducible configurations make anomalies diagnosable and prevent an encouraging bench result from being mistaken for verified system performance.
Review the evidence after integration into the real product. Harness inductance, enclosure temperature, grounding, mechanical resonance and supervisory commands can reveal behavior that was absent on a development fixture. System verification should confirm the assumptions that allowed subsystem testing to represent the final installation.
Next step
A strong motor-controller specification describes the system the controller must survive and control. When the mission profile, energy path, feedback, faults, interfaces and verification evidence are explicit, component selection becomes a reasoned engineering step instead of a guess. For a design review or scoped development program, discuss the application with Outer Reef Technologies.
