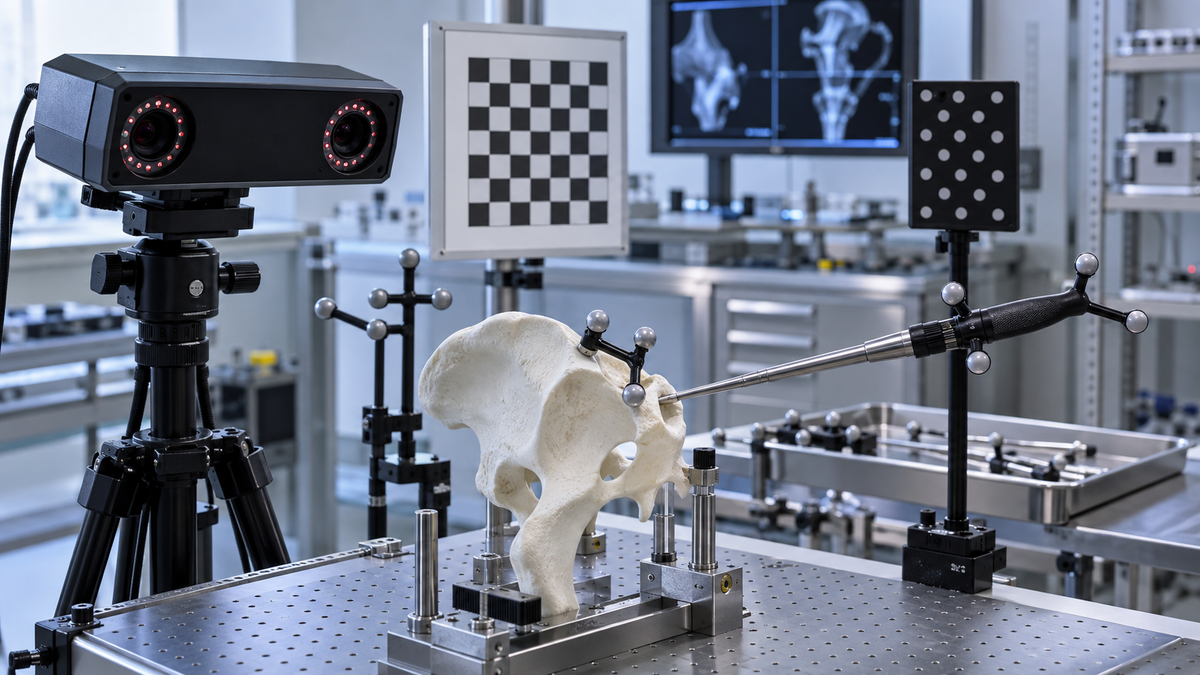

Optical tracking can locate instruments and anatomy without adding a position sensor to every moving joint. That makes it attractive for surgical navigation, robotic guidance and measurement systems. The tradeoff is that tracking quality depends on the complete optical scene: camera placement, marker geometry, line of sight, reflections, calibration, registration and the way the system responds when confidence falls.
A tracker reporting coordinates is only one part of the chain. A useful navigation system must preserve the meaning of those coordinates from the tracked marker to the instrument tip, the patient reference and the displayed anatomy. Each transform, calibration and timing step can contribute error.
Begin with the measurement chain
Write the navigation measurement as a sequence of coordinate transforms. A typical chain may include the camera coordinate frame, a rigid marker body, an instrument calibration, a patient reference, image-space registration and a display transform. This makes it easier to identify which relationships are measured continuously, which are established during setup and which can change during the procedure.
A system-level error budget should address more than the tracker's stated accuracy. Include marker localization, rigid-body fitting, instrument calibration, reference-frame motion, registration, latency, display resolution and mechanical compliance. The allocation should match the clinical task. A pointing instrument, a cutting guide and a robot command interface may need different limits even when they use the same tracker.
Line of sight is a system requirement
Optical tracking requires the camera to see enough markers on each tracked object to solve its pose. A marker can be blocked by the user, the patient, drapes, equipment, another instrument or the device itself. A layout that works on an empty bench may fail after the operating room is configured.
Model the tracking volume and likely occluders early. Useful design inputs include:
- the required patient and instrument working volumes;
- camera mounting positions and adjustment range;
- staff positions during setup and critical tasks;
- equipment, drapes and anatomy that can interrupt visibility;
- allowable duration and frequency of partial occlusion;
- how quickly the system must detect and communicate lost tracking.
The result should be verified in representative room configurations. Moving the camera higher or farther away may improve visibility while reducing marker image size or worsening viewing geometry. Adding markers can improve redundancy while increasing instrument size, cleaning burden and collision risk.
Marker geometry determines observability
A rigid body needs enough visible markers with a geometry that allows the pose to be distinguished reliably. Markers placed too close together reduce angular leverage. Symmetric patterns can create ambiguity. Coplanar arrangements may be weak for certain viewing directions. The pattern must remain identifiable across the required distance and orientation envelope.
Instrument design adds physical constraints. The marker body should avoid the working end, preserve balance and ergonomics, tolerate expected handling, and maintain its geometry through cleaning or sterilization when applicable. If it is removable, the attachment interface becomes part of the calibration and repeatability problem.
Separate tracking, calibration and registration
These terms answer different questions:
| Function | Question it answers | Typical failure |
|---|---|---|
| Tracking | Where is the marker body now? | Occlusion, reflections, poor geometry or leaving the measurement volume |
| Instrument calibration | Where is the functional tip or axis relative to the marker? | Attachment movement, bent instrument, incorrect calibration or mechanical wear |
| Patient registration | How does tracked physical space align with image or model space? | Poor landmark selection, reference movement or changed anatomy |
A navigation display can look stable while one of these relationships is wrong. The software should not treat a valid camera pose as proof that instrument calibration and patient registration remain valid.
Design the patient reference to detect meaningful motion
The patient reference connects the tracked scene to the anatomy. Its attachment and location influence stability, visibility and workflow. If the reference moves relative to the anatomy after registration, the navigation result can be consistently wrong even though the tracker continues reporting a high-quality pose.
Define how the system detects or controls reference movement. Options can include mechanical attachment design, secondary checks, workflow constraints and repeated verification against a known feature. The correct approach depends on the anatomy, procedure and risk analysis.
Latency matters when objects move
The displayed position is delayed by sensor exposure, image processing, rigid-body fitting, communications, application processing and rendering. Filtering can make the display appear smoother while adding more delay. If the instrument moves quickly, latency becomes a spatial error.
Measure end-to-end dynamic behavior rather than adding data-sheet frame rates. Test representative motion profiles and look for time offset, jitter, dropped frames and recovery after temporary occlusion. A system may have acceptable static accuracy and still provide poor dynamic guidance.
Reflections and ambient conditions need deliberate tests
Optical systems can be affected by reflective surfaces, stray emitters, marker contamination and changes in ambient lighting. The relevant susceptibility depends on the tracker technology and its filtering. Test with the actual equipment, finishes, covers, drapes and lighting expected in use.
False or ghost detections should be considered separately from missing markers. A robust design needs rules for marker identification, rigid-body quality and plausible motion so that an incorrect pose is not silently accepted.
Make confidence visible and actionable
A useful interface should distinguish between fully tracked, partially degraded, temporarily unavailable and invalid states. The user needs to understand what happened and what action can restore navigation. A generic warning that disappears without explanation can encourage workarounds or repeated interruptions.
Define behavior for:
- partial marker occlusion;
- complete loss of an instrument or patient reference;
- pose quality below an accepted threshold;
- motion outside the calibrated volume;
- reference movement or failed verification;
- camera disconnection, timing faults and stale data;
- recovery after visibility returns.
FDA's human-factors resources emphasize understanding how users perceive information, interpret it and act on the device. Tracking warnings should therefore be tested as part of the real task, not only reviewed as screen designs.
Verification should cover the complete navigation function
Component checks are necessary but do not establish navigation performance. Build a verification matrix around the intended operating envelope:
- static accuracy throughout the required tracking volume;
- orientation, distance and marker-visibility limits;
- instrument calibration accuracy and repeatability;
- registration accuracy under representative landmark distributions;
- end-to-end latency and dynamic tracking error;
- temporary and sustained occlusion;
- reference movement and recovery workflow;
- reflective objects, lighting changes and competing equipment;
- startup, shutdown, communication loss and stale-data handling;
- production variation in markers, fixtures and mechanical attachments.
Record both aggregate results and spatial patterns. A mean error can hide a weak corner of the tracking volume or a particular orientation that produces unacceptable performance.
Use optical tracking because the workflow supports it
Optical tracking is a strong architecture when the workflow can preserve visibility and the system can make degraded states obvious. It becomes fragile when camera placement is an afterthought, the reference can move without detection, or recovery from occlusion is left to user intuition.
