IRB 140 - Small, Powerful, and Fast 6-Axes Robot

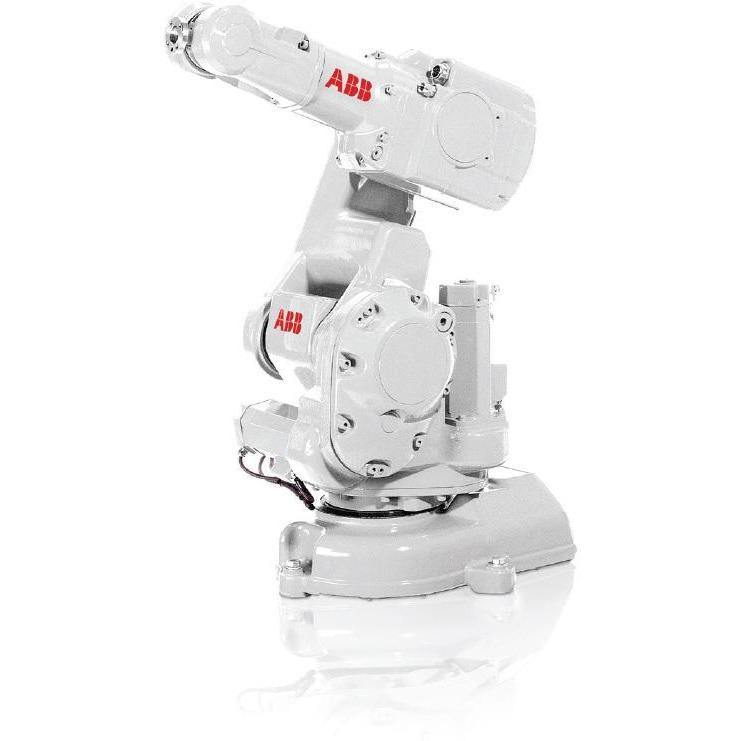

Compact and very powerful. The IRB 140 six-axis multipurpose industrial robot handles a payload of 6 kg with a reach of 810 mm (to axis 5) It can be floor-mounted, inverted, or wall-mounted at any angle. The robust design with fully integrated cables adds to the overall flexibility and the collision detection function ensures the robot is reliable and safe.

Small, powerful and fast

The compact, powerful IRB 140 industrial robot is a six-axis multipurpose robot that handles a payload of 6 kg, with a long reach (810 mm). The IRB 140 can be floor-mounted, inverted, or on the wall in any angle. Available as Standard, Foundry Plus 2, Clean Room, and Wash versions, all mechanical arms completely IP67 protected, making IRB 140 easy to integrate in and suitable for a variety of applications. Uniquely extended radius of the working area due to bend-back mechanism of the upper arm, axis 1 rotation of 360 degrees even as wall mounted.

The compact, robust design with integrated cabling adds to overall flexibility. The Collision Detection option, with full path retraction, ensures the robot is reliable and safe.

When using the IRB 140T, cycle times are considerably reduced where axis 1 and 2 predominantly are used. Reductions between 15-20 % are possible using pure axis 1 and 2 movements. This faster version is well suited for packing applications and guided operations together with PickMaster.

IRB 140 Foundry Plus 2 and Wash versions are suitable for operating in extreme foundry environments and other harsh environments with high requirements on corrosion resistance and tightness. In addition to the IP67 protection, excellent surface treatment makes the robot high pressure steam washable. Also available in the white Clean Room ISO class 6 version, making it especially suited for environments with stringent cleanliness standards.

Main Applications:

  • Arc welding
  • Assembly
  • Cleaning/Spraying
  • Machine tending
  • Material Handling
  • Packing
  • Deburring
