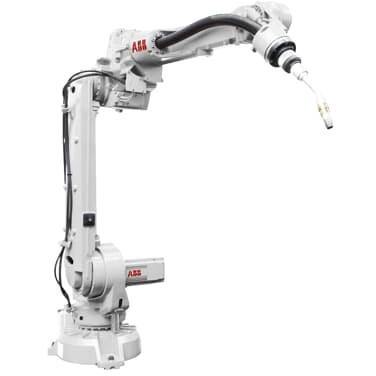

IRB 2600ID - Industrial Robot
Shorter cycle times
Because all process cables and hoses are routed inside the robot arm, the IRB 2600ID robots dramatically decrease downtime caused by interference and wear. This integration also ensures that the maximum achievable acceleration is available at all times without restriction. These features help to significantly reduce total cycle times and increase reliability.
There are two models in the range. The 2 m reach, 8 kg version is designed to be integrated with arc welding process equipment. The 1.85 m reach, 15 kg model comes with a flexible conduit designed to optimize material handling and machine tending.
The ease with which off-line programs can be created with Integrated Dressing (ID). The controlled movements of the hoses and cables are easily predicted which minimizes the time required for fine-tuning programs and enables a faster start of production. Total programming time is reduced by up to 90%.
Reduced cost of ownership
With all hoses and cables firmly secured and protected, they swing less during operation, and with less exposure to weld spatter or cutting fluids and the lifetime increases significantly. Costs are reduced in terms of purchasing and welding torch exchange by up to 75% and up to three production stops per year can be eliminated.
Higher output from a smaller footprint
With its compact design and without loose hoses and cables, the IRB 2600ID has a very small footprint with a swing base radius of only 337 mm and a base width of only 511 mm. In material handling and machine tending, this means that the robot can be placed closer to the machines being served. In arc welding the reduced risk of interference with other robots allows for productive, high-density installations with 50% more robots, and up to 50% higher output from a production cell. That’s how the IRB 2600ID helps you make the most out of your production space; higher output from a smaller area.
Increased agility in smaller spaces
The wrist is very slim, only 227 x 130 mm. With all hoses and cables integrated through the process wrist the robot can easily access narrow openings and perform complex movements. For example, in arc welding this means that the IRB 2600ID can do circular welds without interruption and without compromising quality – and in a much shorter cycle time thereby increasing production output.
- Machine tending
- Material handling
- Arc welding
