A brushless DC motor can remove brushes, commutator wear and brush arcing from a motion system, but it also moves commutation into the electronics and firmware. That exchange can improve controllability and maintenance behavior when the motor, inverter, feedback and control method are designed as one system. It can also add cost and integration risk when the application does not need the extra capability.
The useful comparison is therefore not “brushless is better.” It is which motor-and-drive architecture meets the required torque, speed, motion quality, environment, life, safety and cost with acceptable engineering margin.
Start with the complete drive system
A brushed DC motor commutates mechanically. Brushes and a segmented commutator switch armature current as the rotor turns. A reversible electronic drive often uses an H-bridge, plus current sensing and feedback when the product needs regulated torque, speed or position.

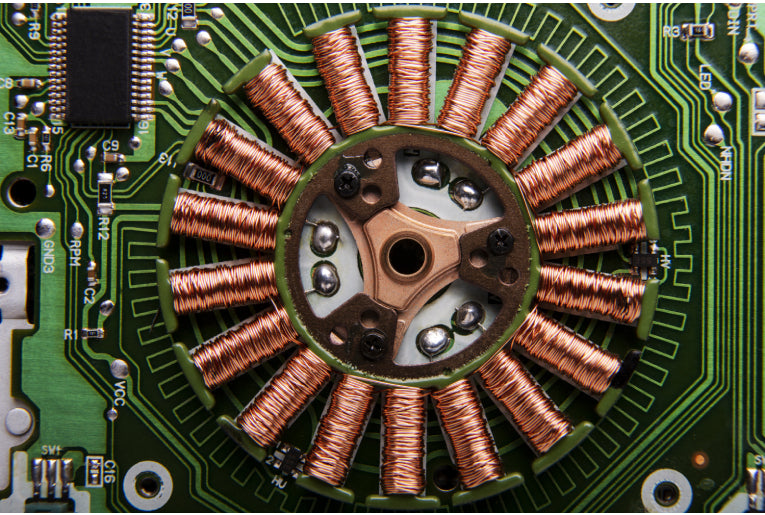

A three-phase brushless permanent-magnet motor requires electronic commutation. Its controller typically includes a three-phase inverter, gate drive, current and voltage sensing, rotor-position sensing or estimation, real-time firmware and protection. The drive may use six-step commutation, sinusoidal control or field-oriented control (FOC). The word brushless describes the motor construction; it does not specify one controller architecture.
Microchip’s BLDC commutation overview describes the electronically commutated stator and permanent-magnet rotor. Its broader motor-control algorithm guide distinguishes sensored and sensorless six-step approaches from sinusoidal and FOC implementations.
BLDC and brushed DC tradeoffs
The table is directional. Actual performance depends on motor construction, power stage, feedback, control tuning, transmission, load, cooling and operating point.
| Design factor | Brushed DC system | BLDC system |
|---|---|---|
| Commutation | Mechanical brushes and commutator | Electronic switching synchronized to rotor position |
| Typical power stage | One H-bridge for bidirectional control | Three half-bridges for a three-phase motor |
| Rotor information | Not required for basic rotation; feedback may be added for closed-loop control | Rotor sector or electrical angle must be measured or estimated |
| Wear mechanism | Brush and commutator wear are inherent | No brush wear; bearings, insulation, magnets, connectors and electronics still limit life |
| Low-speed torque control | Can be straightforward with current feedback; brush friction and commutation remain | Strong when current and position feedback are adequate; sensorless methods need a low-speed/startup strategy |
| Motion and acoustic quality | Depends on armature, commutator, PWM and mechanics | Ranges from block-commutated ripple to smooth sinusoidal/FOC behavior |
| Electronics and firmware | Can be simpler for basic speed and direction | More switching channels, timing, sensing and control-state complexity |
| Service environment | Brush debris and arcing may be unacceptable in some products | Removes those brush-specific issues but does not remove EMC, thermal or fault-containment work |
Where BLDC architecture creates value
Maintenance and contamination constraints
Removing sliding electrical contacts can be valuable when access is difficult, brush debris is undesirable, or brush inspection and replacement would be costly. That does not make the complete assembly maintenance-free. Bearing loads, lubricant life, seals, rotor balance, magnet temperature, winding insulation and cable flex still need design attention.
Controlled torque, speed and motion
Electronic commutation gives the controller direct responsibility for stator excitation. With suitable current sensing and rotor angle information, the drive can regulate torque-producing current, coordinate speed and position loops, shape acceleration and implement controlled braking. FOC can reduce commutation-related torque ripple and acoustic excitation when the application justifies its measurement and commissioning cost.
Packaging and thermal objectives
A BLDC motor may provide favorable power density for a given application, but the result is not automatic. Copper loss, iron loss, inverter conduction and switching loss, cooling path, duty cycle and ambient conditions all contribute. The controller may move heat from the motor into a compact electronics enclosure, so the thermal model must include both.
Operating environment
Brush arcing can matter in environments with contamination, sensitive optics, acoustic limits or ignition concerns. A brushless drive removes brush arcing but introduces high-edge-rate inverter switching. Cable common-mode current, switch-node layout, motor insulation stress, bearing current and conducted/radiated emissions may then become the dominant electrical concerns.
Where a brushed DC motor remains a sound choice
A brushed motor can be the lower-risk solution when the motion is simple, operating life is compatible with the brush system, the package is accessible, acoustic and contamination behavior are acceptable, and cost or development time dominates. Basic voltage control needs little computation. Adding an encoder and current sensor can still provide accurate closed-loop speed or position control.
That simplicity can be especially valuable for low-volume equipment, intermittent mechanisms and products where the motor is already a qualified replaceable component. Choosing BLDC solely to appear more advanced can create unnecessary inverter, sensing, firmware and validation work.
Controller architecture matters as much as motor type
Power stage
A BLDC inverter must safely switch three motor phases across the full DC-bus range, peak current and regenerative conditions. MOSFET voltage and current ratings are only the beginning. Gate charge, switching energy, reverse conduction, dead time, parasitic inductance, DC-link capacitance and the current-return geometry affect loss, ringing and device stress.
Texas Instruments’ motor-driver design resources call out voltage margin, RMS versus peak current, bulk capacitance, PCB layout, thermal design and EMI as linked decisions. The gate-drive and layout recommendations are device-specific, but the system lesson is general: switching behavior must be measured on the actual board and motor wiring.
Current measurement
Current feedback may support torque control, current limiting, diagnostics and protection. Low-side bus sensing, phase-leg shunts, inline sensing and Hall-based sensors have different measurable windows, common-mode ranges, bandwidth, isolation needs and reconstruction logic. A protection comparator and a control-quality current measurement are not automatically interchangeable.
TI’s motor-drive current-sensing design guide explains why measurement quality affects both control and protection. Kelvin routing, amplifier settling, offset, gain error, PWM synchronization and ADC timing should be treated as parts of the control loop.
Rotor feedback and startup
Hall sensors offer sector information with straightforward startup. Encoders and resolvers can support tighter angle and position requirements. Sensorless control removes a physical sensor but depends on electrical observability. Back-EMF methods have little information at standstill and low speed, so the controller needs alignment, open-loop acceleration, initial-position detection or another startup method suited to the load.
Fault behavior
Define what happens during stall, blocked rotor, phase open/short, current-sensor fault, position-sensor fault, bus overvoltage, undervoltage, overtemperature, loss of communication and watchdog reset. Hardware protection must act quickly enough to protect the power stage. Firmware must record, classify and recover from faults without creating unsafe torque.
A requirements-based selection process
- Map the load. Record continuous and peak torque, speed, inertia, acceleration, friction, duty cycle, shock loads, back-driving and regeneration.
- Define observable limits. Set requirements for speed error, position error, torque ripple, audible noise, vibration, response time and thermal rise.
- Define the environment. Include ambient temperature, contamination, moisture, cleaning, pressure, altitude, cable length, EMC and service access.
- Choose feedback intentionally. Decide what the system must know at standstill, during startup and through reversal or zero-speed operation.
- Model lifecycle cost. Include motor, controller, harness, sensors, development, production calibration, service and replacement.
- Prototype the risky conditions. Test the real motor, controller, wiring and load at voltage, current and temperature corners before freezing the architecture.

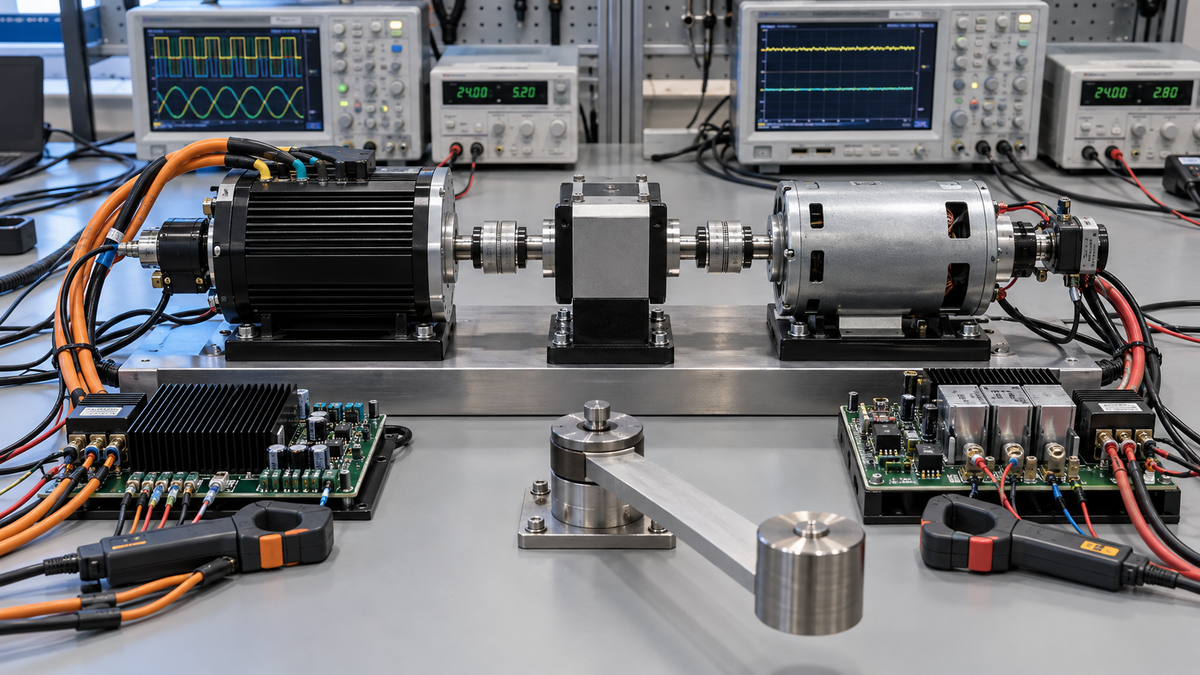

What to verify on the bench
- startup at minimum bus voltage, maximum static load and temperature extremes;
- continuous and transient phase current, including current-sensor saturation and blanking windows;
- MOSFET switching, dead time, overshoot and gate behavior at worst-case wiring inductance;
- speed, torque and position response across the required envelope;
- regeneration and DC-bus behavior during braking and back-driving;
- motor, inverter and enclosure temperature at representative duty cycles;
- conducted/radiated emissions and immunity with production-intent cables and grounding;
- fault detection, shutdown energy, retry policy and recovery from every defined fault.
The engineering decision
BLDC architecture is compelling when removing brush wear or enabling electronically controlled torque and motion creates measurable product value. Brushed DC remains appropriate when simpler hardware meets the life, environment and performance requirements. The strongest decision comes from the full electromechanical system, not a generic motor-type ranking.
