Current rating is a thermal claim disguised as an electrical number. A BLDC controller can deliver impressive peak current on a cold bench and still fail its application when switching loss, enclosure temperature, airflow, repetition and component aging are included.
Thermal design should begin with the mission profile and end with measured margin in representative hardware. This guide expands the thermal topics introduced in the motor controller design guide and Outer Reef’s custom motor-controller service.
Define thermal operating cases
Separate continuous operation, acceleration, stall-limited events, regeneration and fault handling. For each case, record current, bus voltage, switching frequency, modulation, duration, repetition and starting temperature.
Include worst credible ambient, enclosure heating and cooling degradation. A controller mounted near a motor or battery may see a higher local ambient than the system specification suggests.
Build a loss model
Estimate MOSFET conduction loss from RMS current and temperature-dependent resistance. Add switching, diode or dead-time, gate-drive, shunt, copper, capacitor and auxiliary-supply losses. Use device data carefully across voltage, current and temperature.
A model does not need perfect accuracy to identify dominant sources and sensitivities. It should be updated with double-pulse tests, efficiency measurements and temperature data from representative hardware.
Map heat paths, not just components
Junction-to-case numbers do not describe the complete path to ambient. Include package, solder, PCB copper, thermal vias, interface material, enclosure, heat sink and coolant or air.
Parallel heat paths matter. Top-side cooling, bus bars and connectors can move heat in unexpected ways. Contact pressure and interface flatness can dominate an otherwise good design.
Account for temperature interaction
MOSFET resistance rises with temperature, capacitor life falls as hotspot temperature increases and magnetic or shunt behavior may drift. Loss and temperature therefore form an iterative problem.
Use temperature-dependent values and realistic tolerances. Confirm that current sharing remains acceptable across parallel devices and that sensing stays accurate near thermal limits.
Place sensors for control decisions
A PCB temperature sensor does not directly measure semiconductor junction temperature. Choose sensor locations from the thermal model and characterize delay and offset across relevant operating cases.
Derating thresholds should include estimation error, thermal lag and component limits. Fast hardware protection still handles events that temperature sensing cannot catch.
Design a stable derating strategy
Derating should reduce stress before a shutdown threshold while preserving predictable system behavior. Define entry, slope, minimum capability, hysteresis and recovery timing.
Coordinate thermal limits with torque control and supervisory behavior. In some systems a gradual torque limit is safe; in others reduced authority creates a hazard and requires a different response.
Validate the enclosure and installation
Test the controller in its intended enclosure, orientation, mounting and cooling configuration. Cable routing, neighboring heat sources, contamination and sealed volumes can change results.

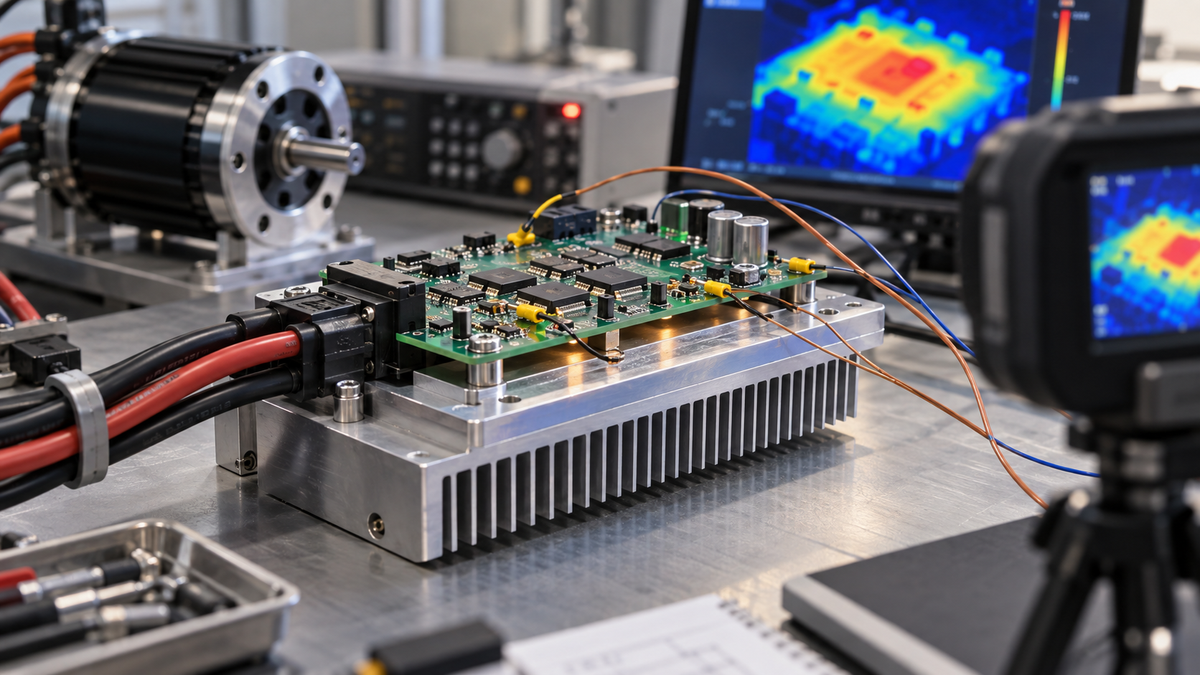

Use thermocouples, resistance-based junction estimates, thermal imaging and coolant or airflow measurements as appropriate. Document emissivity and attachment effects when interpreting surface temperatures.
Verify life and fault margin
Run steady-state and cyclic tests at source and ambient extremes. Include blocked cooling, stalled load, repeated acceleration and regeneration when credible. Verify both performance and protection behavior.
Thermal cycling can drive solder, interface and connector wear even when peak temperature is acceptable. A reliability review should connect temperature history to expected service life and maintenance.
Use a design-review checklist
Before releasing hardware or beginning formal verification, review the architecture as a complete energy and control system. The checklist should identify the owner and evidence for each open item rather than recording a simple pass or fail.
- Are the normal, peak, regenerative and fault operating cases quantified?
- Do component stresses include tolerance, temperature and transient margin?
- Are high-current and high-frequency return paths shown explicitly?
- Can sensing remain accurate during the worst switching conditions?
- Are protection thresholds coordinated across hardware, firmware and upstream devices?
- Does the mechanical design provide the assumed cooling and grounding paths?
- Are startup, shutdown, reset and communication-loss behaviors specified?
- Can the planned tests measure every acceptance criterion with suitable uncertainty?
Close the review with a prioritized evidence plan. Resolve destructive or architecture-level risks first, then performance margins, then optimization. That sequence prevents detailed tuning from hiding a power-stage, thermal or interface limitation that requires a redesign.
Record the exact hardware revision, firmware commit, motor, load, source, cables, cooling and instrument setup used for each result. Controller behavior can change materially when any of those elements changes. Reproducible configurations make anomalies diagnosable and prevent an encouraging bench result from being mistaken for verified system performance.
Review the evidence after integration into the real product. Harness inductance, enclosure temperature, grounding, mechanical resonance and supervisory commands can reveal behavior that was absent on a development fixture. System verification should confirm the assumptions that allowed subsystem testing to represent the final installation.
Next step
A credible current rating states the operating case, cooling condition, temperature limits and duration behind the number. Modeling finds the dominant risks; representative testing proves the heat path and derating behavior. Outer Reef can support motor-controller architecture, hardware and verification.
