Motor-controller EMC problems are usually created by current paths, impedance and switching edges long before a compliance test begins. Fast voltage and current transitions excite parasitics in the PCB, cables, motor, enclosure and power source. A late filter can hide one symptom while creating heat, instability or another emission path.
The practical objective is to control differential- and common-mode energy at its source, provide intentional return paths and verify the assembled system under representative operating conditions. This article complements Outer Reef’s custom motor-controller design work.
Identify the switching loops
Map the high-di/dt commutation path through the DC-link capacitor, half bridges and return. Minimize its area and inductance. Place local capacitance so switching current does not travel through long planes or cables.
Map gate-drive loops separately. Gate resistance, driver strength, Miller behavior and source inductance affect edge speed, ringing and false turn-on. Observe switch-node and gate waveforms with appropriate probes.
Separate differential and common-mode behavior
Differential-mode noise circulates between conductors, while common-mode current returns through parasitic capacitance to chassis, earth or nearby structures. The mitigation components and measurement setups differ.
Motor cables and windings create substantial common-mode capacitance. Cable length, shielding and motor construction may determine emissions more than the controller board alone.
Control the DC-link impedance
Use a hierarchy of bulk and high-frequency capacitance with known ripple current, voltage margin and layout. The smallest capacitor is useful only if its loop is physically small.
Bus ringing can overstress semiconductors and increase emissions. Characterize source inductance, capacitor ESL and switching behavior before selecting snubbers or clamps.
Design grounding and chassis connections intentionally
Distinguish power return, signal reference, protective earth and chassis. Decide where they connect and what current each path should carry. Accidental connections through mounting hardware, shields or instruments can invalidate bench results.
Shield termination should provide a low-impedance high-frequency path. Long pigtails add inductance and can make an otherwise suitable shield ineffective.
Protect sensitive measurements and interfaces
Current shunts, amplifiers, encoders, Hall signals and communications operate near noisy power stages. Control their reference paths, filtering, common-mode range and timing.
Use differential routing and appropriate isolation where the architecture requires it. Filtering must preserve bandwidth and fault-detection response; arbitrary capacitance can destabilize loops or delay protection.
Use edge control with evidence
Slower edges can reduce emissions but increase switching loss and may change dead-time or diode behavior. Gate resistance, split turn-on/turn-off paths, active gate control and snubbers are tradeoffs rather than universal fixes.
Measure efficiency, temperature, overshoot and emissions together. Optimize the system, not a single waveform.
Plan pre-compliance testing

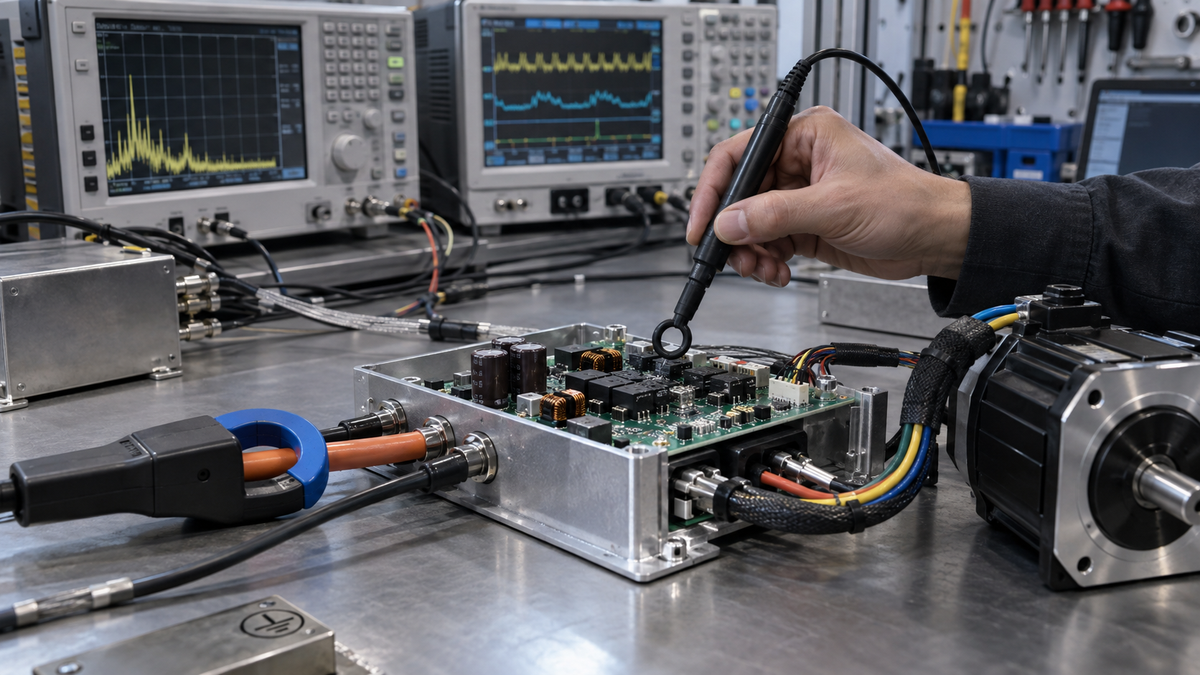

Use current probes, near-field probes, LISNs or other fixtures appropriate to the applicable environment. Establish repeatable motor load, cable routing, operating mode and grounding.
Test high-load, light-load, regeneration, switching-frequency changes and communication activity. The worst emission may not occur at maximum torque. Preserve setup photographs and configurations so improvements are comparable.
Verify immunity and fault behavior
EMC includes susceptibility as well as emissions. Evaluate how transients, RF energy and supply disturbances affect torque, sensing, communication and protection.
The controller should fail predictably when interference exceeds its tolerance. Recovery, watchdog behavior and latched faults belong in the verification plan, not only the compliance report.
Use a design-review checklist
Before releasing hardware or beginning formal verification, review the architecture as a complete energy and control system. The checklist should identify the owner and evidence for each open item rather than recording a simple pass or fail.
- Are the normal, peak, regenerative and fault operating cases quantified?
- Do component stresses include tolerance, temperature and transient margin?
- Are high-current and high-frequency return paths shown explicitly?
- Can sensing remain accurate during the worst switching conditions?
- Are protection thresholds coordinated across hardware, firmware and upstream devices?
- Does the mechanical design provide the assumed cooling and grounding paths?
- Are startup, shutdown, reset and communication-loss behaviors specified?
- Can the planned tests measure every acceptance criterion with suitable uncertainty?
Close the review with a prioritized evidence plan. Resolve destructive or architecture-level risks first, then performance margins, then optimization. That sequence prevents detailed tuning from hiding a power-stage, thermal or interface limitation that requires a redesign.
Record the exact hardware revision, firmware commit, motor, load, source, cables, cooling and instrument setup used for each result. Controller behavior can change materially when any of those elements changes. Reproducible configurations make anomalies diagnosable and prevent an encouraging bench result from being mistaken for verified system performance.
Review the evidence after integration into the real product. Harness inductance, enclosure temperature, grounding, mechanical resonance and supervisory commands can reveal behavior that was absent on a development fixture. System verification should confirm the assumptions that allowed subsystem testing to represent the final installation.
Next step
Good motor-controller EMC performance comes from controlled energy paths, compact loops, intentional grounding and representative system tests. Compliance testing then confirms a design strategy instead of discovering it. For help with architecture, PCB implementation or bench verification, contact Outer Reef Technologies.
