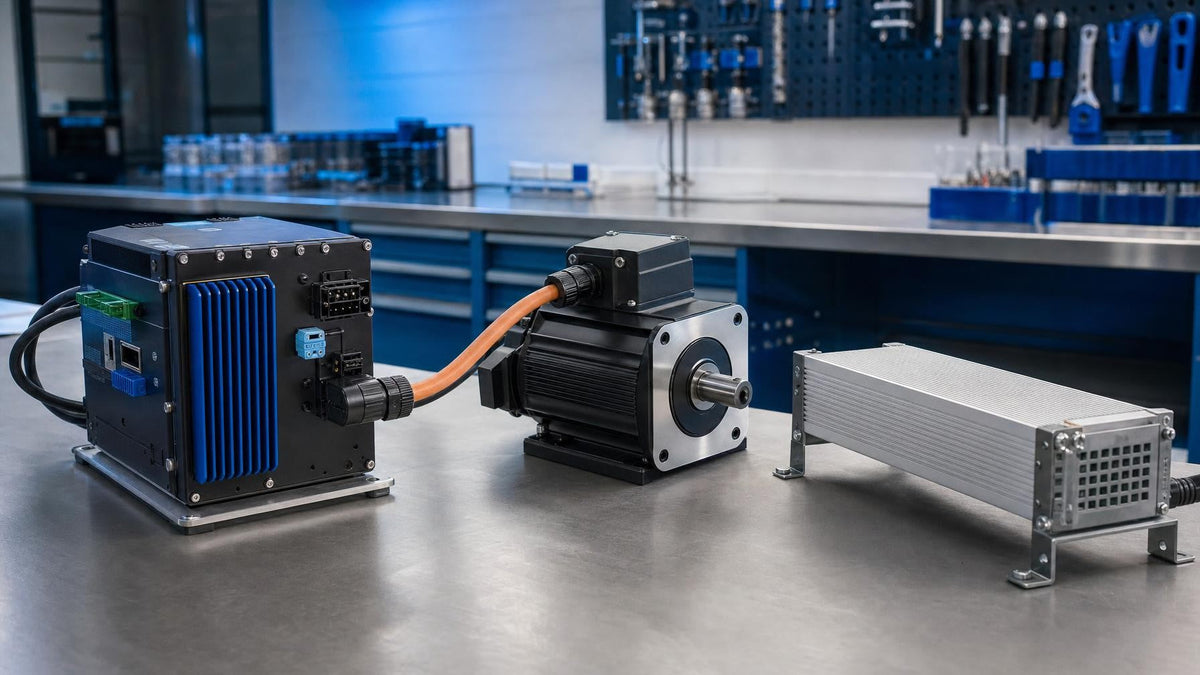

A BLDC controller can operate reliably while accelerating a load and still lose control of its DC bus during deceleration. The motor and mechanism return energy that must go somewhere. A supply capable of delivering current is not necessarily capable of absorbing it, and a nominal bus-voltage rating does not describe the complete stopping event.
This guide focuses on the energy path during braking, rather than control-method selection. It extends the custom motor-controller engineering discussion with questions that connect the mechanism, power source, protection hardware and verification plan.
Start with the mechanical energy and stopping requirement
Record the load inertia referred to the motor shaft, initial speed, required final speed and stopping time. For a rotating inertia, the change in kinetic energy is one half of the inertia multiplied by the difference between the squared initial and final angular speeds. Include the driven mechanism, not just the rotor. A descending load or an externally driven axis can continue supplying energy during the stop.
As an illustrative calculation, an inertia of 0.002 kg m² rotating at 3,000 rpm stores about 98.7 J. Dissipating that energy over 0.5 seconds corresponds to an average of about 197 W before accounting for losses, the actual braking profile and any other energy inputs. These are arithmetic examples, not a product rating or an Outer Reef test result.
Define where returned current can flow
Draw the regenerative path through the motor, inverter, DC link and source. Include reverse-current blocking, contactors, fuses and switches. Evaluate the source in its real operating states: a mains supply, a connected battery, a battery with charging restricted, and a disconnected source do not provide the same destination for energy.
Do not infer permission to charge from a battery's presence. The battery-management system, temperature, state of charge and operating limits determine whether returned current is acceptable. Establish the supported regenerative voltage and current at the system interface. If the source cannot absorb the event, identify another energy path before finalizing the controller architecture.
Calculate what the DC-link capacitor can actually absorb
Capacitor energy is one half of capacitance multiplied by voltage squared. The available energy headroom is therefore one half of capacitance multiplied by the difference between the squared maximum permitted voltage and starting voltage. Use the permitted system voltage, including component tolerances and design margin, rather than an absolute maximum rating as a normal target.
For illustration, 1,000 µF rising from 48 V to 60 V absorbs only 0.648 J. That is much smaller than the rotating-energy example above. This comparison is not a capacitor-selection recommendation. It shows why adding capacitance without an energy budget can miss the dominant problem. Capacitance tolerance, temperature and aging also affect the available headroom.
Choose a braking path with explicit limits
Possible architectures include returning energy to an accepting source, sharing a DC bus with an appropriate consuming load, or dissipating energy through a controlled braking resistor. Each choice needs an operating envelope. A shared load may disappear just when braking is required; a source may reject current; and a resistor has thermal and pulse limits.
Novanta's shunt-braking documentation describes a resistor and switching transistor controlled by DC-bus thresholds. That is a useful reference architecture, rather than a universal circuit. Determine whether the selected drive includes the switching device, requires external hardware, or provides only a control output.
Separate peak braking power from repeated-stop heating
Check resistor energy per event, peak power, pulse duration, repetition rate and cooling conditions separately. The average heating over repeated operation can be acceptable while a single pulse exceeds the component's capability. Conversely, a resistor that survives one emergency event may overheat under a frequent production cycle.
The switching device and its drive path need their own voltage, current and thermal assessment. Review the complete manufacturer's limits for the intended implementation, including allowable resistor values where specified. Connect the dissipative load to the controller thermal and derating plan, including installation clearances and the consequences of a hot braking element.
Coordinate thresholds, timing and stopping behavior
Define when the braking path turns on, when it releases, and how those thresholds relate to the normal supply range and overvoltage protection. Include sensing error, ripple, response delay and transient overshoot. A threshold diagram makes the intended sequence easier to review than isolated values in separate firmware and hardware documents.
Changing the deceleration ramp can reduce the rate at which energy reaches the bus, but it changes motion behavior. Lenze's application guidance explains that bus-voltage-limiting functions can extend actual braking time beyond the parameterized ramp. Verify the resulting stopping time and distance against the application requirement instead of treating the absence of an overvoltage trip as sufficient evidence.
Evaluate power loss and externally driven motion
A controlled stop with every supply rail present is only one case. Review source disconnection, control-power loss, a moving mechanism that drives the motor, and restart while the shaft is already turning. Identify which sensing and protective functions remain powered, and which energy paths remain physically available in each state.
Texas Instruments' powered-off braking application brief addresses externally driven brushed-DC mechanisms and specific gate-driver protection features. Its circuit should not be copied into a BLDC design without analysis. The broader review question is relevant: what protects connected electronics when mechanical motion generates voltage while normal control power is absent?
Treat protection faults as system events
Consider an open braking resistor, a failed switching device, a broken control connection and an invalid bus-voltage measurement. Establish the diagnostic information and response for each credible failure. An open circuit and a short circuit can create very different electrical, thermal and motion consequences.
Distinguish bus overvoltage protection from a guaranteed stopping function. The required response depends on the product's risk assessment and architecture. Disabling torque can change deceleration or permit continued motion; it does not itself prove that the mechanism stops within a required distance. Keep safety-related claims separate from ordinary operational braking performance.
Verify the energy balance under representative conditions
Build a test matrix around maximum relevant speed and load, repeated stops, source acceptance limits, ambient temperature and controlled fault cases. Measure bus voltage, current, the commanded and actual motion profile, and temperatures where they affect the operating envelope. Use appropriately rated instrumentation and an energy-controlled test arrangement.
Include wiring and enclosure conditions representative of the installation. Explain any gap between the mechanical energy estimate, energy delivered to the DC link and energy dissipated elsewhere. Verification should close with a documented energy budget, justified component limits, measured transient behavior and demonstrated stopping performance. A single successful stop is a starting observation, not the complete design argument.
